Panel On Steel Structure
Back

PAC panels can be used with steel or concrete structures as curtain walls in horizontal and/ or vertical arrangement suitable for commercial and industrial buildings. PAC Panels are lightweight, fire resistant, water penetration resistant, pest resistant, fast and easy to install using a small mobile truck mounted crane.

Products Applied:

  • PAC Vertical Panels
  • PAC Horizontal Panels
  • Steel brackets and
    angles Dimensions Length : Up to 6 m
    Width : 60 cm Nominal
    Thickness : 15, 20, 25 cm

Benefits:

  • Speed in production and delivery
  • Fast installation process
  • High thermally insulated structure
  • High sound insulation
  • Fire rating 6 hours
  • Less labor intensive
  • No plastering required

Applicable for:

  • Steel Structures
DOWNLOAD BROCHURE

Method Statement

Here you can download the method statement which provides a detailed step by step guide on how the installation of the Panel On Steel Structure should be completed.

DOWNLOAD METHOD STATEMENT

Connection Details

For a detailed diagram showing the connection details for the Panel On Steel Structure download the PDF here.

DOWNLOAD CONNECTION DETAILS

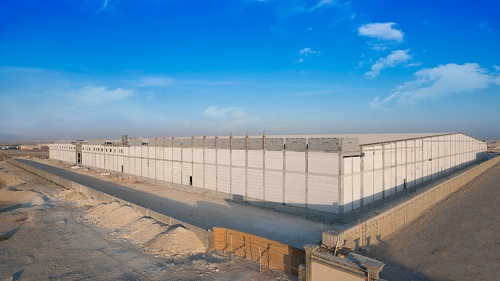

  • Lulu Hypermarket

    Project Name :Central Warehouse

    Client :Lulu Hypermarkets

    Consultant :xxx

    Contractor :Al Swaiket Projects

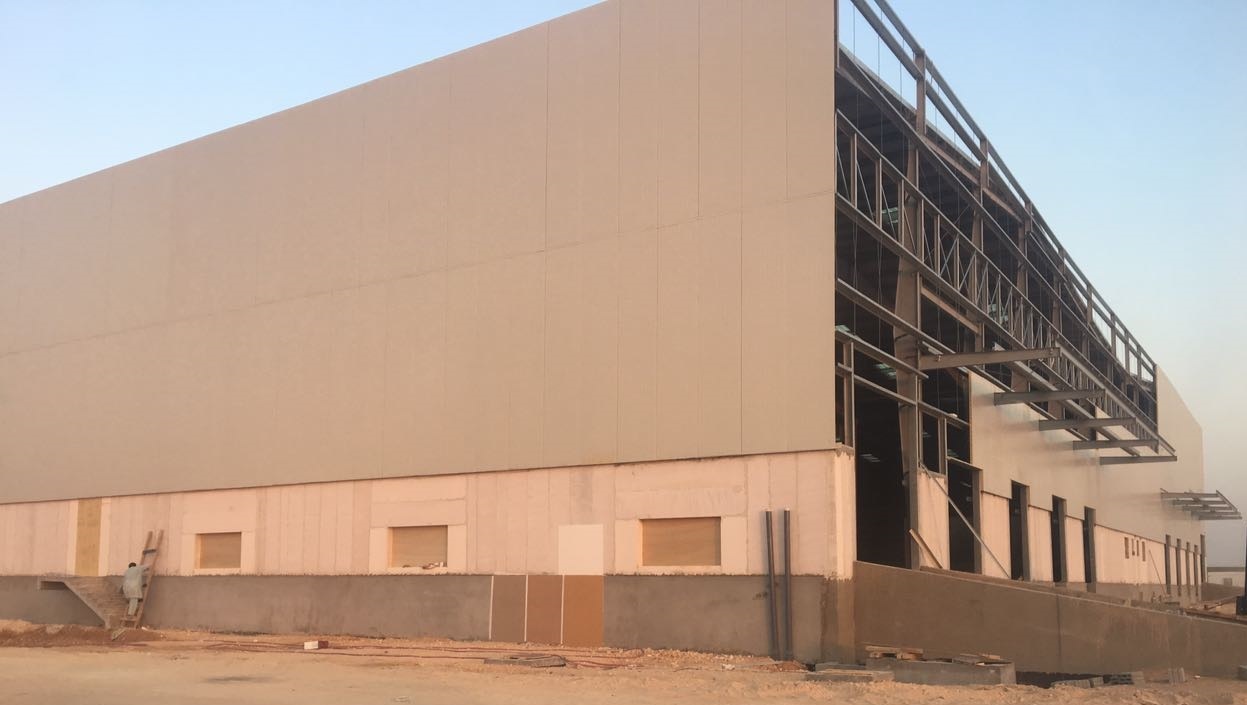

  • Suraif Warehouse

    Project Name :Suraif

    Client :xxx

    Consultant :xxx

    Contractor :xxx

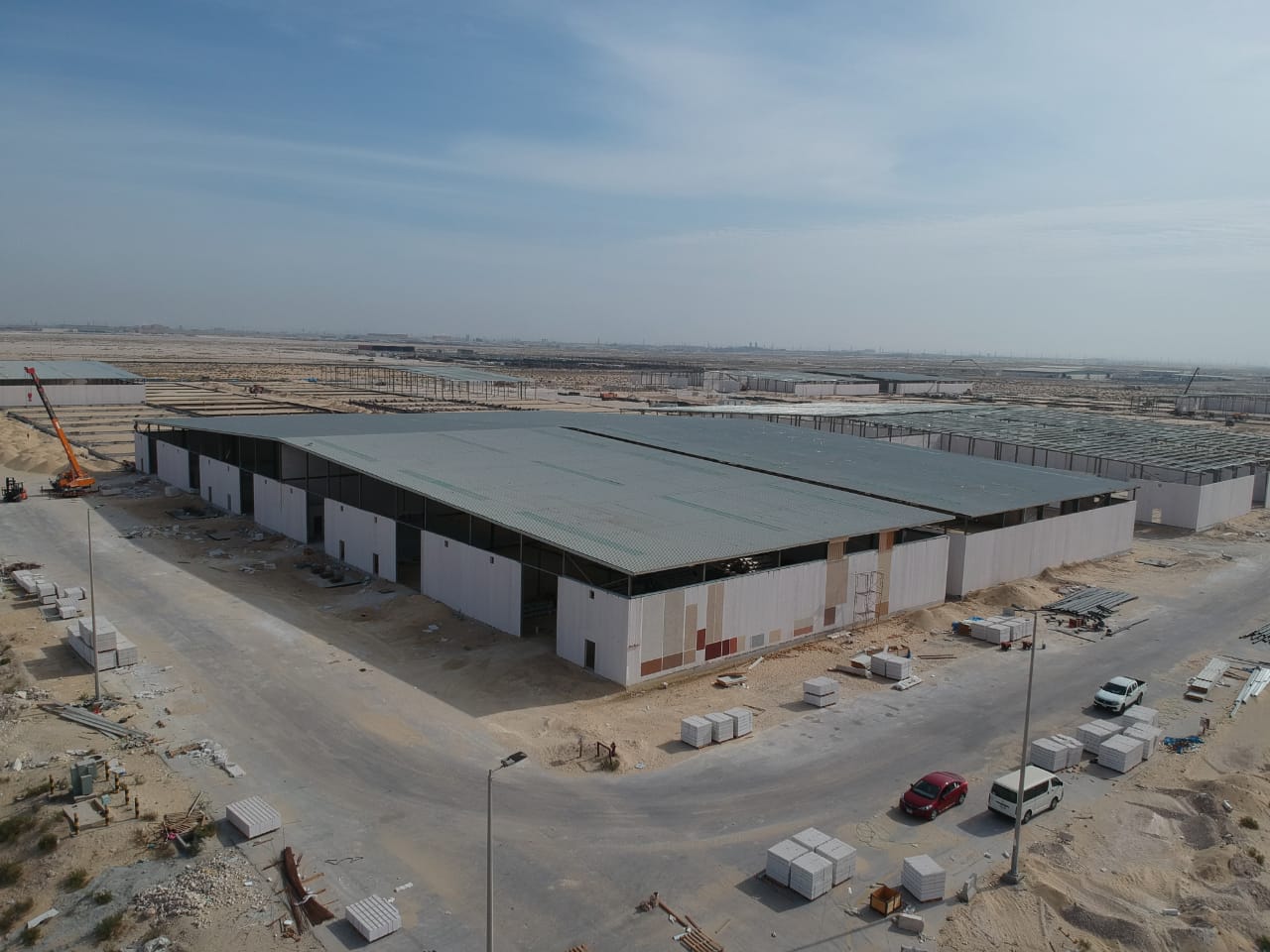

  • Durrar Tammam Project

    Project Name :Durrar Tammam Project

    Client :Al Nojom Al Motaheda

    Consultant :Al Sahab Engineering Consulting

    Contractor :Durrar Tammam

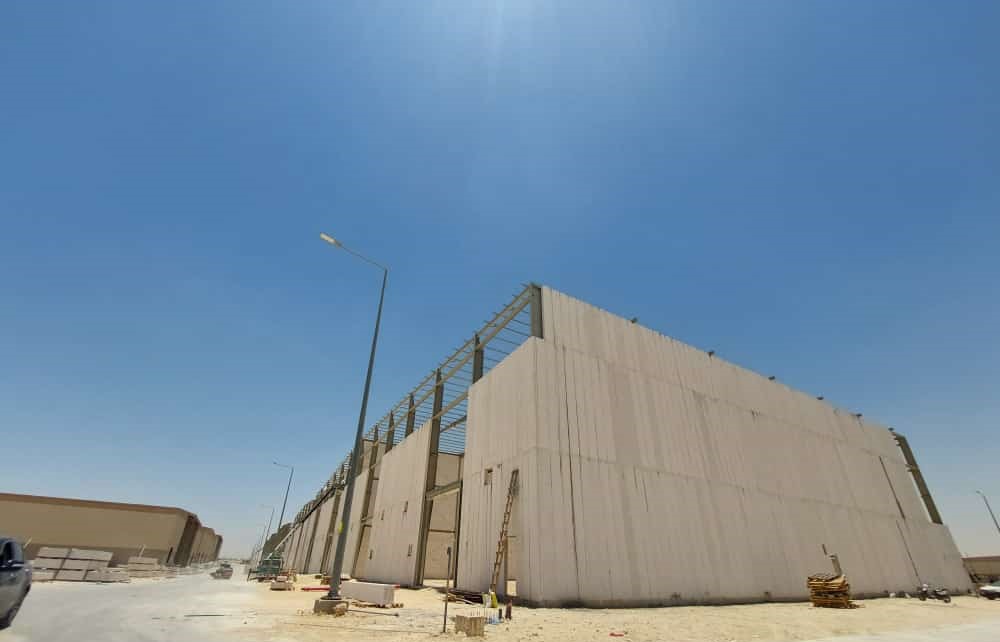

  • DTC PROJECT

    Project Name :AJLAN Warehouses Project in 2nd Industrial City Dammam.

    Client :Abdulaziz Alajlan Son’s for Trading & Real Estate Iinvestments co.

    Consultant :IMPACT Consulting Engineers.

    Contractor :Dorrar Tammam trading and contracting co.

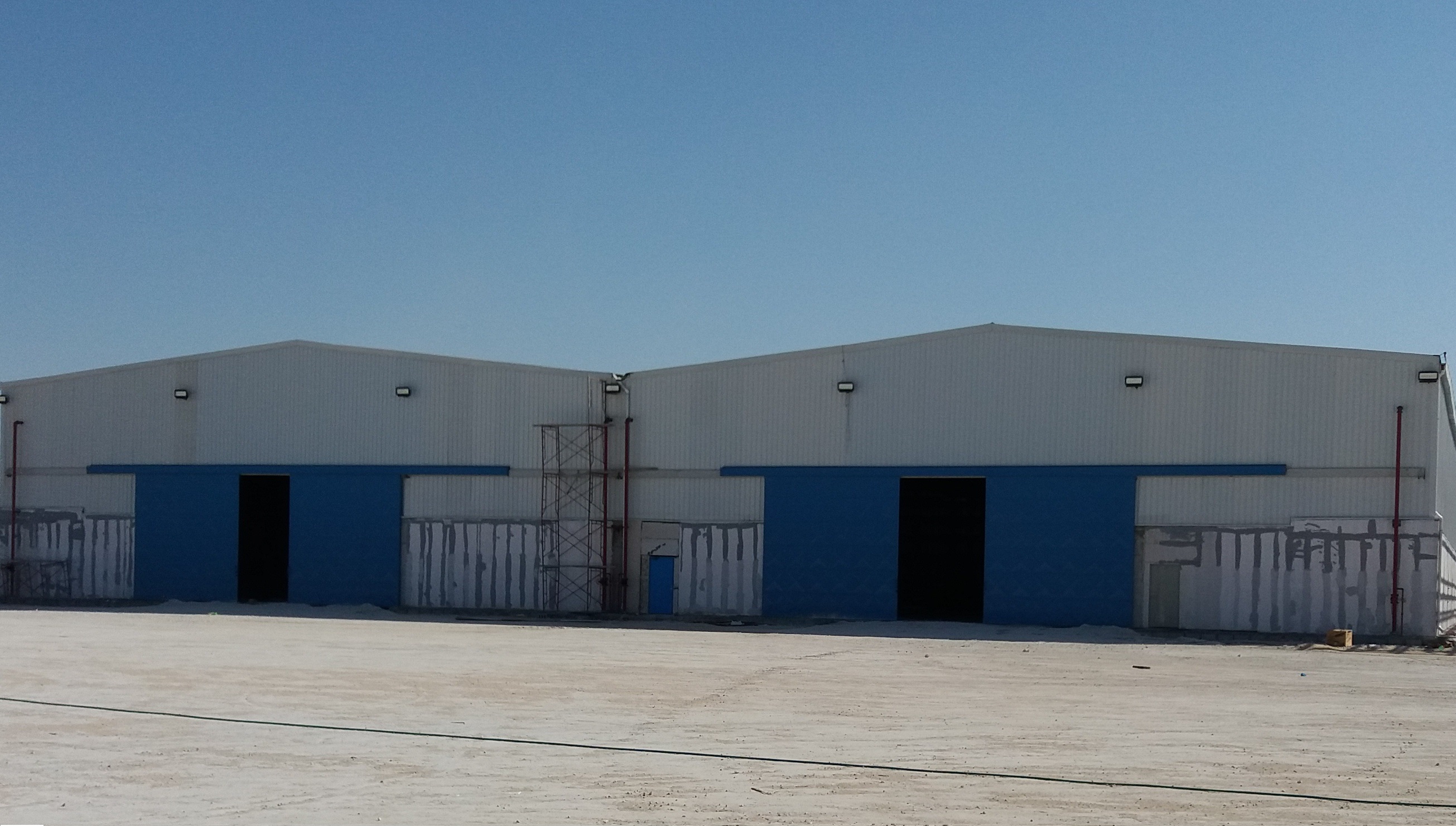

  • BANI PROJECT

    Project Name :Taiba Warehouses Project in Riyadh

    Client :(Ajlan & Bros) Abdulaziz Alajlan Sons for Trading & Real Estate Investments co.

    Consultant :(FAE) Fahad Alreshoodi Engineering Consultant Company

    Contractor :BaniI LTD.
